RxSWIN Search
What is an RxSWIN?
RXSWIN stands for "Regulation x Software Identification Number". It's a unique identifier that's defined by a vehicle manufacturer and is required by authorities. The RXSWIN represents information about the software that's relevant to type approval and its characteristics. The "x" in RXSWIN stands for the numbering of the ECE regulations, such as R141 for Tyre Pressure Monitoring systems.
Guichard, F. (2021) Rxswin Short introduction, https://unece.org/.
Available at: https://unece.org/sites/default/files/2021-06/GRPE-83-27.pdf (Accessed: 19 August 2024).
Getting to the RxSWIN Search page

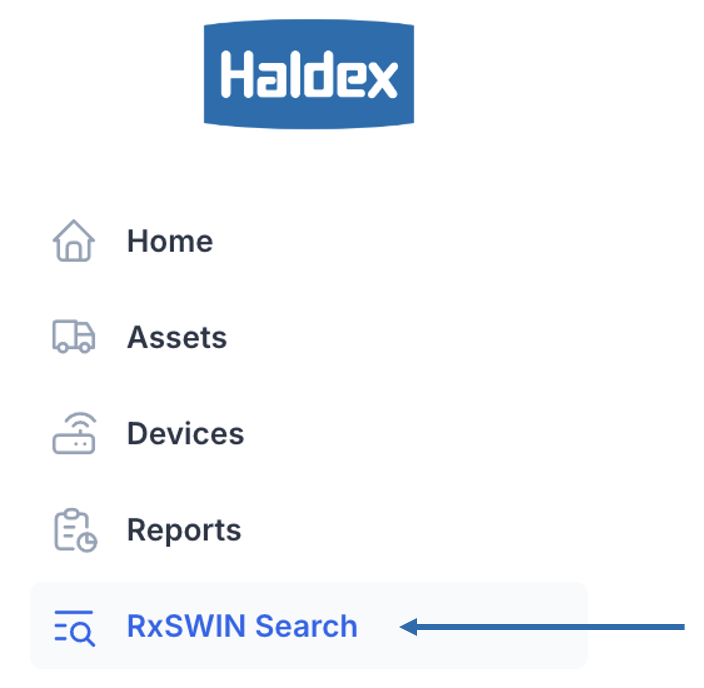

In the navigation sidebar bar click RxSWIN Search.
Overview
Search Page
 | |

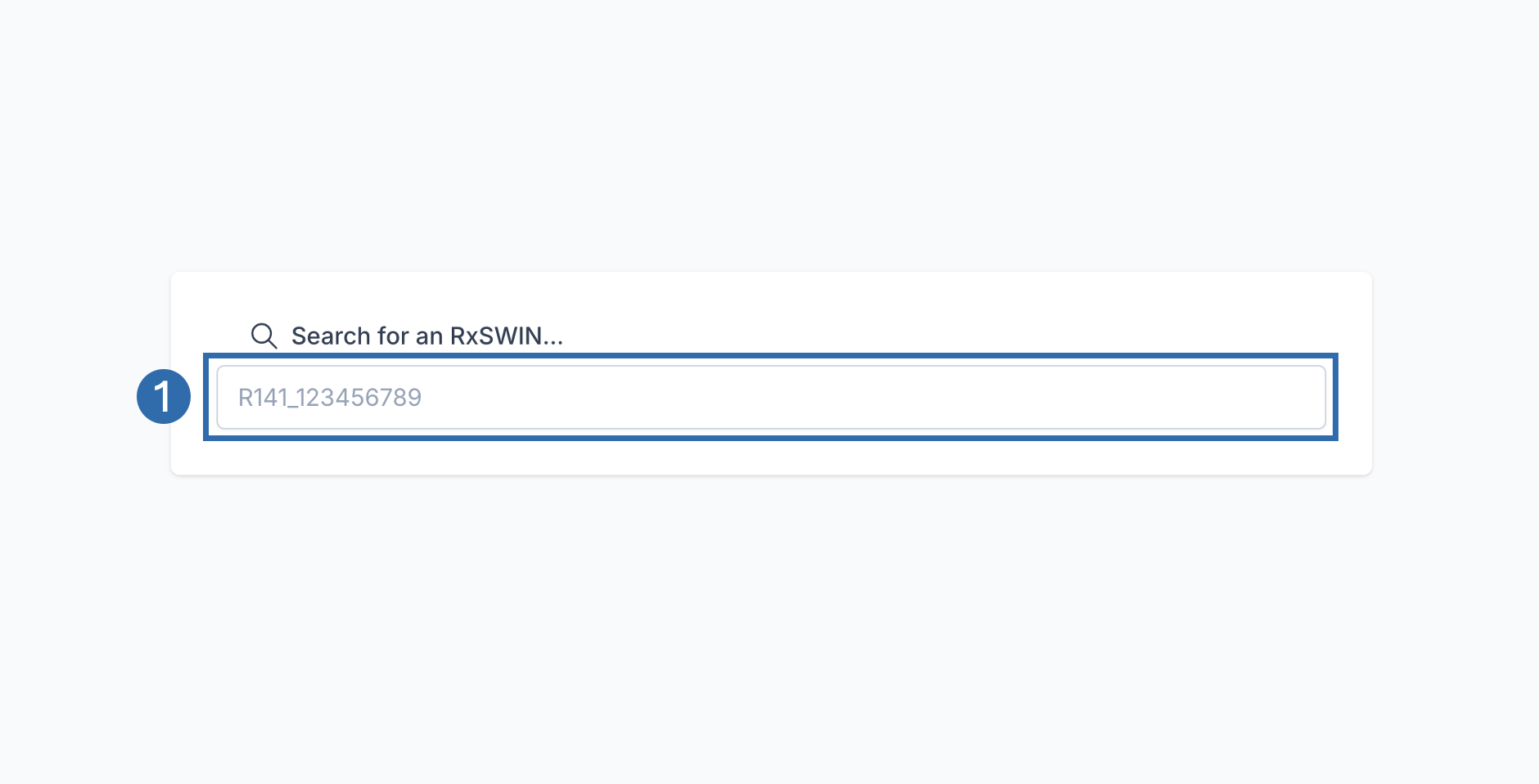

 | Search Use the search bar to filter the RxSWINs. Searching for an RxSWIN will change the view to https://axscend.atlassian.net/wiki/spaces/SD/pages/edit-v2/1493270529#Search-Results. You can search for the Regulation Number (e.g. R141) or the SWIN (e.g. 88378109), or the whole string R141_88378109 |
Search Results
 | |

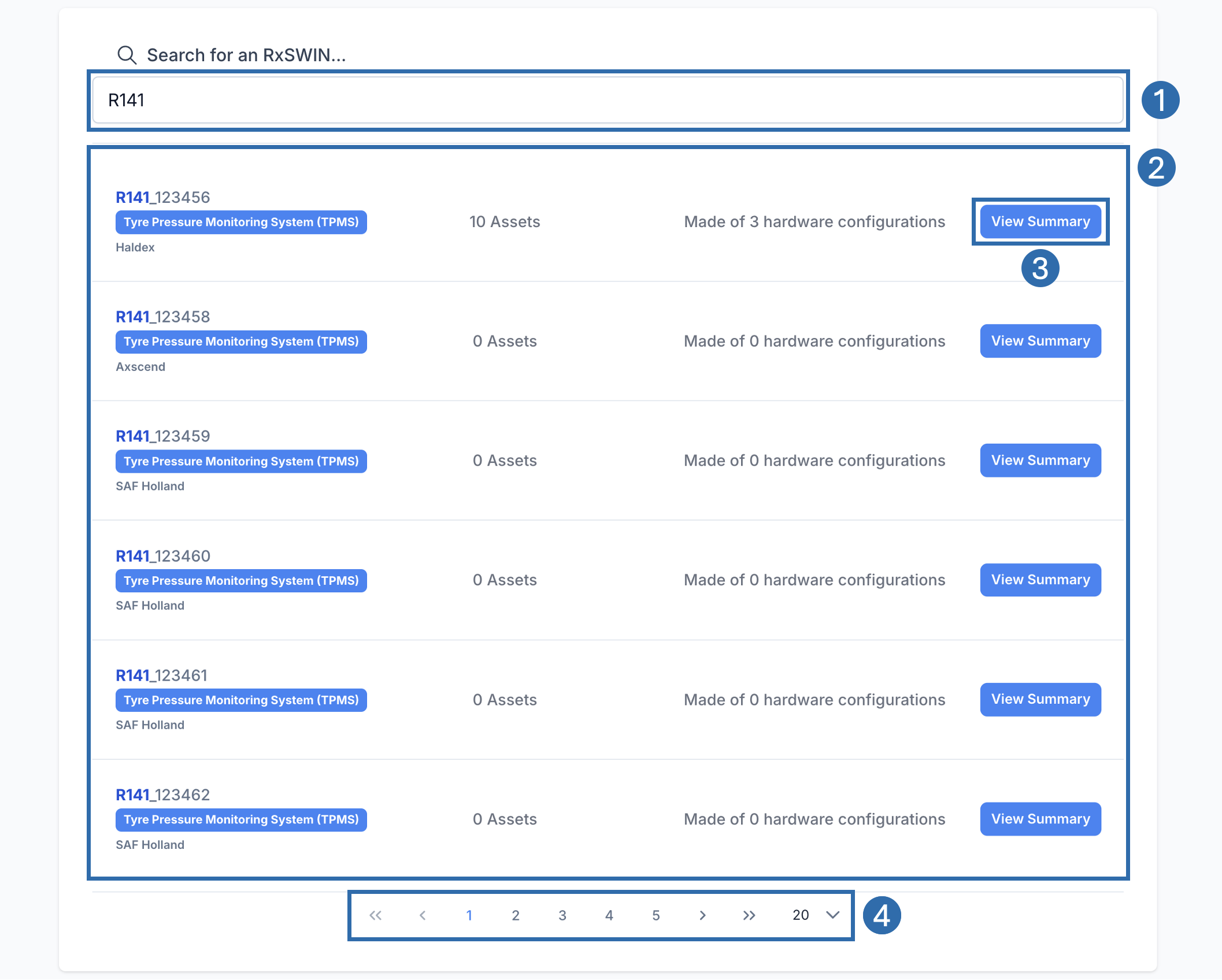

| Search Use the search bar to filter the RxSWINs. You can search for the Regulation Number (e.g. R141) or the SWIN (e.g. 88378109), or the whole string R141_88378109 |
 | Search Results The filtered results of the search. |
 | View Summary Link to view summary of the RxSwin |
 | Pagination Controls Pagination splits the data up into pages. Pagination Information Use > to go to the next page. Use >> to go to the last page. Click and change the number (e.g. 20) to change the results per page. |
Searching for an RxSWIN
Prerequisites:
You should be on the RxSWIN Search Page.

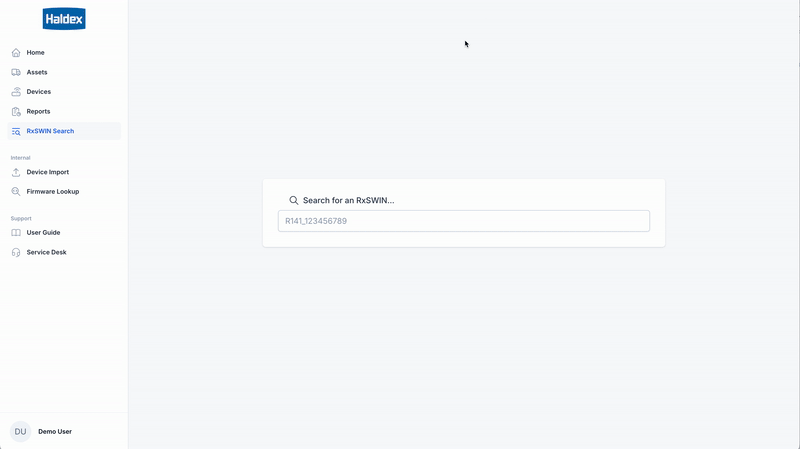

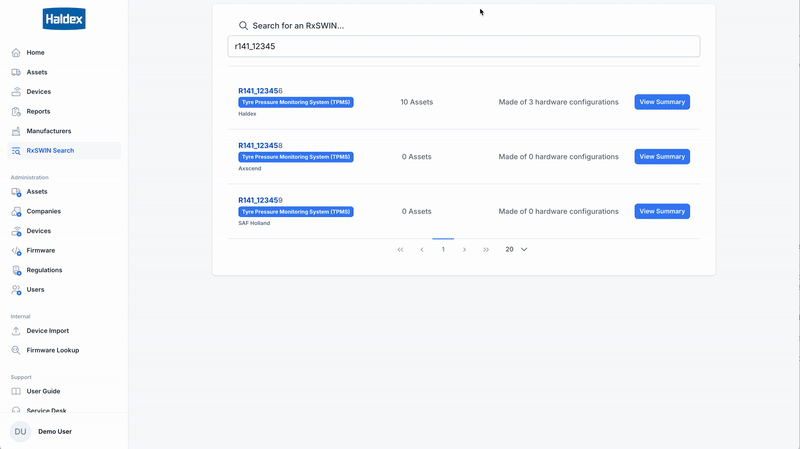

Start to type an RxSWIN in the search bar.
You can refine the results by adding more information to the search string.
You can search for the Regulation Number (e.g. R141) or the SWIN (e.g. 88378109), or the whole string R141_88378109
Viewing RxSWIN Summary
On the summary page you can view the count of Assets using the RxSWIN, which configuration of device version and firmware are affected, and which regulation is affected.
Click View Summary alongside a search result to open the overview.

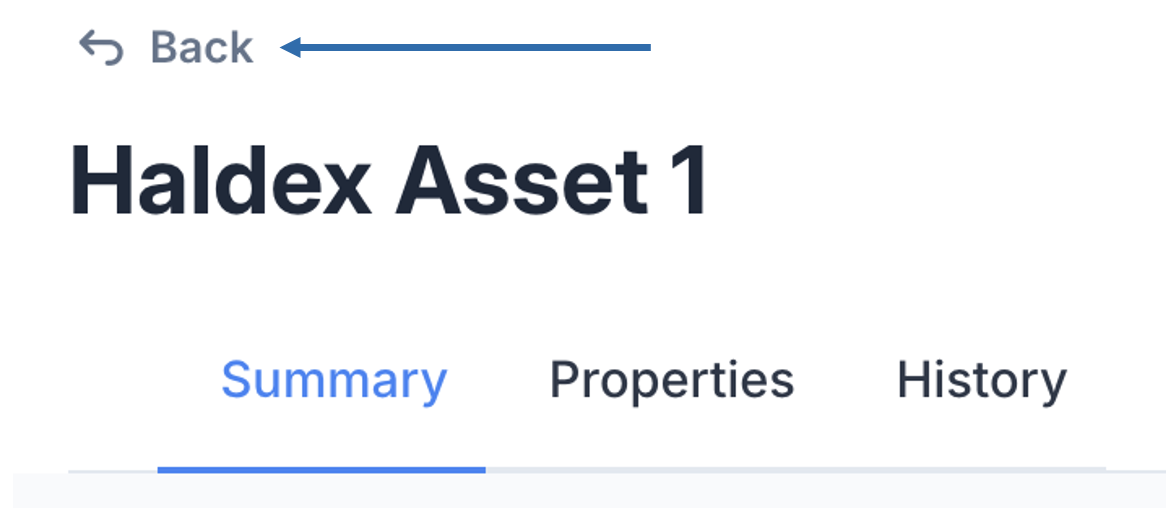

You can go back to the previous page by using the ← Back button.
